Product Summary
The DMK2308-000 is a GaAs flip chip schottky diode. The DMK2308-000 GaAs Schottky barrier diode offers high performance at commercial market prices. It is designed for low junction capacitance, as well as low series resistance.Diodes are designed for MIC work (hard and soft substrates), but the leadless design eliminates the problems associated with mounting of beam lead diodes. Due to its rigid construction, it exceeds environmental requirements for MIC and hybrid applications.
Parametrics
DMK2308-000 absolute maximum ratings: (1)Electrical Specifications at 25℃; (2)Recommended Frequency: 20-100GHz; (3)VB1 @ 10 μA: 3.0V; (4)CT2 0 V, 1 MHz: 0.03 to 0.035pF; (5)RS @ 10 mA: 9Ω; (6)VF @ 1 mA: 680 to 780mV.
Features
DMK2308-000 features: (1)Designed for High Volume Designs; (2)High Frequency (20–100 GHz); (3)Exceeds Environmental Requirements for MIC & Hybrid Applications; (4)Designed for Low Junction Capacitance and Low Series Resistance; (5)Applications Include PCN Mixers and Circuits, As Well As Low Power, Fast Switching; (6)Low Parasitic Flip Chip Configuration.

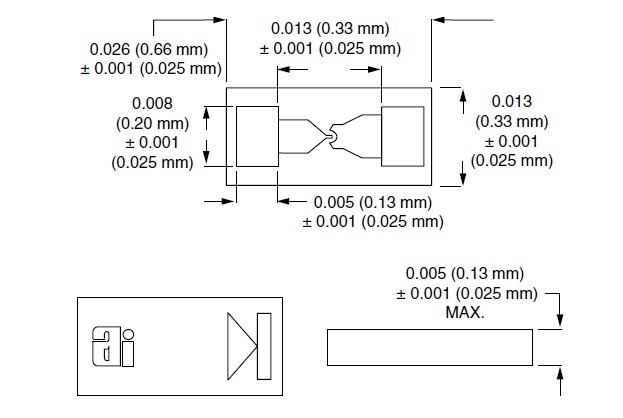

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DMK2308-000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
DMK2308-000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DMK2790-000 |
Other |
|
Data Sheet |
Negotiable |
|
||||
