Product Summary

The SC00821518 is Skyworks MIS Chip Capacitor available in a wide range of sizes and capacitance values. The SC00821518 is frequently used in applications requiring DC blocking, RF bypassing, or as a fixed capacitance tuning element in filters, oscillators, and matching networks. The SC00821518 has a dielectric composed of thermally grown silicon dioxide over which a layer of silicon nitride is deposited. This dielectric possesses a low temperature coefficient of capacitance and very high insulation resistance. The SC00821518 also exhibits excellent long-term stability making them suitable for high-reliability applications. The capacitor has a high dielectric breakdown which permits the use of thin dielectrics resulting in large capacitance per unit area.

Parametrics

SC00821518 absolute maximum ratings: (1)Operating temperature range (TOP): -65 to +200℃; (2)Storage temperature range (TSTG): -65 to +200℃; (3)Dielectric withstanding voltage: 100 V.

Features

SC00821518 features: (1)Readily available from stock; (2)High reliability silicon oxide–nitride dielectric; (3)Low loss—typically 0.04 dB in a 50Ω system; (4)Operation through 26 GHz; (5)Wide temperature operation; (6)Available lead (Pb)-free, RoHS-compliant, and Green.

Diagrams

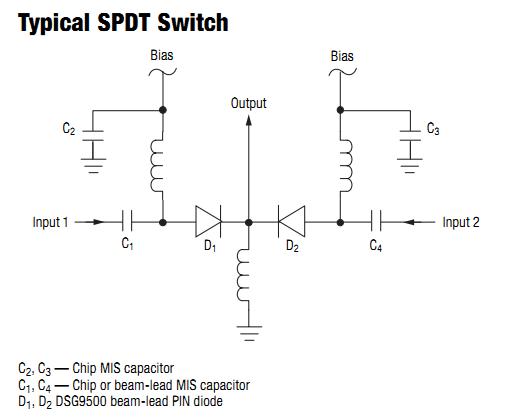

SC00821518 typical SPDT switch

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SC00821518
SC00821518

CAP THIN FILM 8.2PF 100V SMD
Data Sheet
0-100: $0.76
100-500: $0.64
500-1000: $0.55
1000-2500: $0.46
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
SC000014
SC000014
Amphenol SINE Systems
Circular Metric Connectors RockSolid 2.0mm Socket Contact
Data Sheet
0-1: $0.88
1-10: $0.79
10-50: $0.71
50-100: $0.65
SC000039
SC000039
Amphenol SINE Systems
Circular Metric Connectors Socket Contact Rock Solid 3.6mm
Data Sheet
0-1: $2.34
1-10: $2.10
10-50: $1.87
50-100: $1.68
SC000046
SC000046
Amphenol SINE Systems
Circular Metric Connectors Socket Contact Slit Machined 3.6mm
Data Sheet
0-1: $1.12
1-10: $1.01
10-50: $0.91
50-100: $0.84
SC003A5F91-SRZ
SC003A5F91-SRZ
GE Energy (Lineage Power)
DC/DC Converters 24Vin 3.3Vout 3.5A SMT
Data Sheet
0-93: $12.81
93-100: $12.18
100-150: $12.18
150-250: $10.18

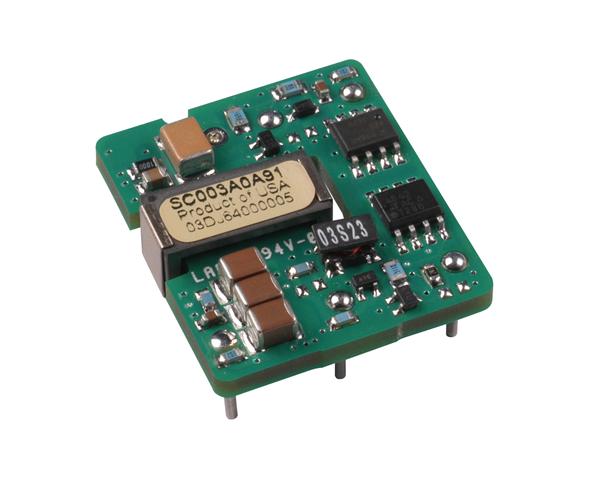

SC003A0A91-SRZ
