Product Summary

The SK38 is 3.0A surface mount schottky barrier rectifier.

Parametrics

SK38 absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:80V; (2)Maximum RMS Voltage:56V; (3)Maximum DC Blocking Voltage:80V; (4)Maximum Average Forward Current:3.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):100A; (6)Typical thermal resistance:20℃/W; (7)Maximum Forward Voltage at 3.0A, per element:0.85V; (8)Maximum DC Reverse Current at TJ=25℃:0.5mA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

SK38 features: (1)Plastic package has Underwriters Laboratory; (2)Flammability Classification 94V-O; (3)For surface mounted applications; (4)Low profile package; (5)Built-in strain relief; (6)Metal to silicon rectifier. majority carrier conduction; (7)Low power loss,high efficiency; (8)High surge capacity; (9)For use in low voltage high frequency inverters, free wheeling, and polarity protection applications; (10)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

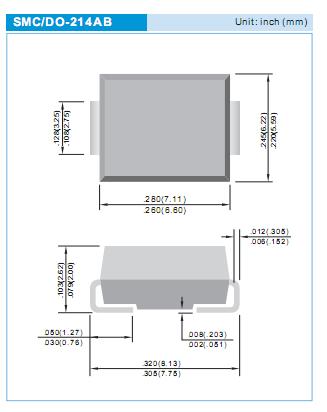

SK38 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SK38
SK38


RECT SCHOTTKY 3A 80V DO-214AB

Data Sheet

Negotiable
SK38A
SK38A

Other


Data Sheet

Negotiable
SK38A-LTP
SK38A-LTP


DIODE SCHOTTKY 3A 80V SMA

Data Sheet

0-1: $0.37
1-10: $0.26
10-100: $0.17
100-250: $0.13
250-500: $0.10
500-1000: $0.08
1000-2500: $0.07
2500-5000: $0.07
SK38A-T
SK38A-T

Micro Commercial Components (MCC)

Schottky (Diodes & Rectifiers) 3.0A 80V

Data Sheet

Negotiable
SK38A-TP
SK38A-TP

Micro Commercial Components (MCC)

Schottky (Diodes & Rectifiers) 3.0A 80V

Data Sheet

0-1: $0.38
1-25: $0.32
25-100: $0.23
100-500: $0.18
SK38B-LTP
SK38B-LTP


DIODE SCHOTTKY 3A 80V SMB

Data Sheet

0-1: $0.37
1-10: $0.26
10-100: $0.17
100-250: $0.13
250-500: $0.10
500-1000: $0.08
1000-2500: $0.07
2500-5000: $0.07
SK38B-T
SK38B-T

Micro Commercial Components (MCC)

Schottky (Diodes & Rectifiers) 3.0A 80V

Data Sheet

Negotiable
SK38B-TP
SK38B-TP

Micro Commercial Components (MCC)

Schottky (Diodes & Rectifiers) 3.0A 80V

Data Sheet

0-1: $0.38
1-25: $0.32
25-100: $0.23
100-500: $0.18
