Product Summary

The ER1J is a 1.0A surface mount superfast rectifier.

Parametrics

ER1J absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage:600V; (2)Maximum RMS Voltage:420V; (3)Maximum DC Blocking Voltage:600V; (4)Maximum Average Forward Current:1.0A; (5)Peak Forward Surge Current : 8.3ms single half sine-wave superimposed on rated load (JEDEC method):30A; (6)Typical thermal resistance:34℃/W; (7)Maximum Forward Voltage at 1.0A, per element:1.7V; (8)Maximum DC Reverse Current at TJ=25℃:1.0uA; (9)Operating Junction and Storage Temperature Range:-55℃ to +150℃.

Features

ER1J features: (1)For surface mounted applications; (2)Low profile package; (3)Built-in strain relief; (4)Easy pick and place; (5)Superfast recovery times for high efficiency; (6)Plastic package has Underwriters Laboratory; (7)Flammability Classification 94V-O; (8)Glass passivated junction; (9)In compliance with EU RoHS 2002/95/EC directives.

Diagrams

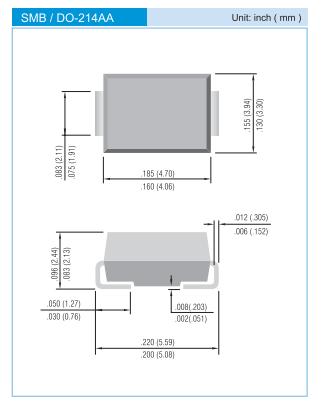

ER1J package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ER1J
ER1J

Other


Data Sheet

Negotiable
ER1J-LTP
ER1J-LTP


DIODE SUPER FAST 1A 600V SMB

Data Sheet

0-1: $0.32
1-10: $0.23
10-100: $0.14
100-250: $0.10
250-500: $0.08
500-1000: $0.06
ER1J-TP
ER1J-TP

Micro Commercial Components (MCC)

Rectifiers 1A,600V

Data Sheet

0-1: $0.30
1-25: $0.22
25-100: $0.13
100-500: $0.09
